Slimparker 557 Tower

CSLIMPARKER 557 TOWER

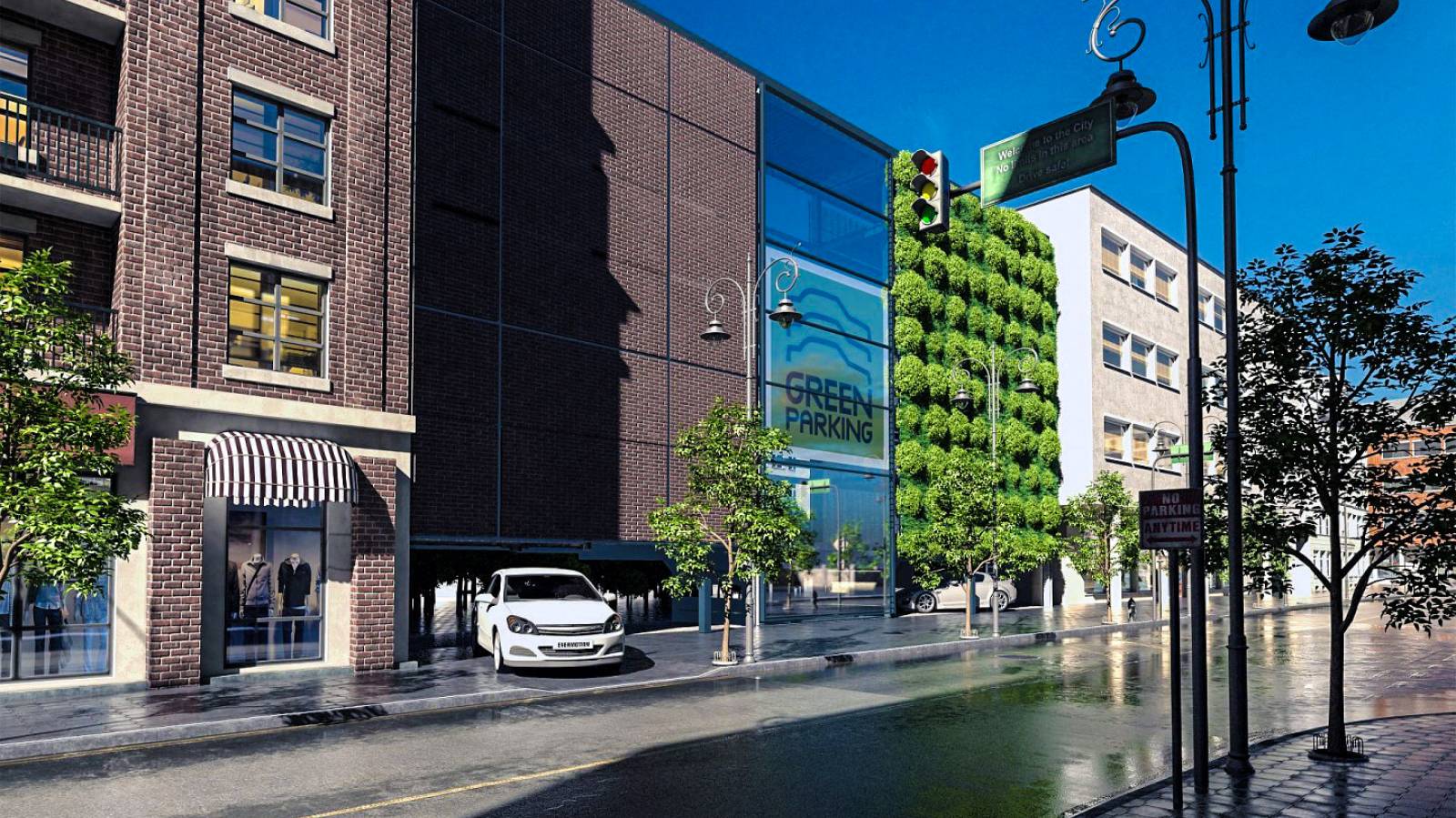

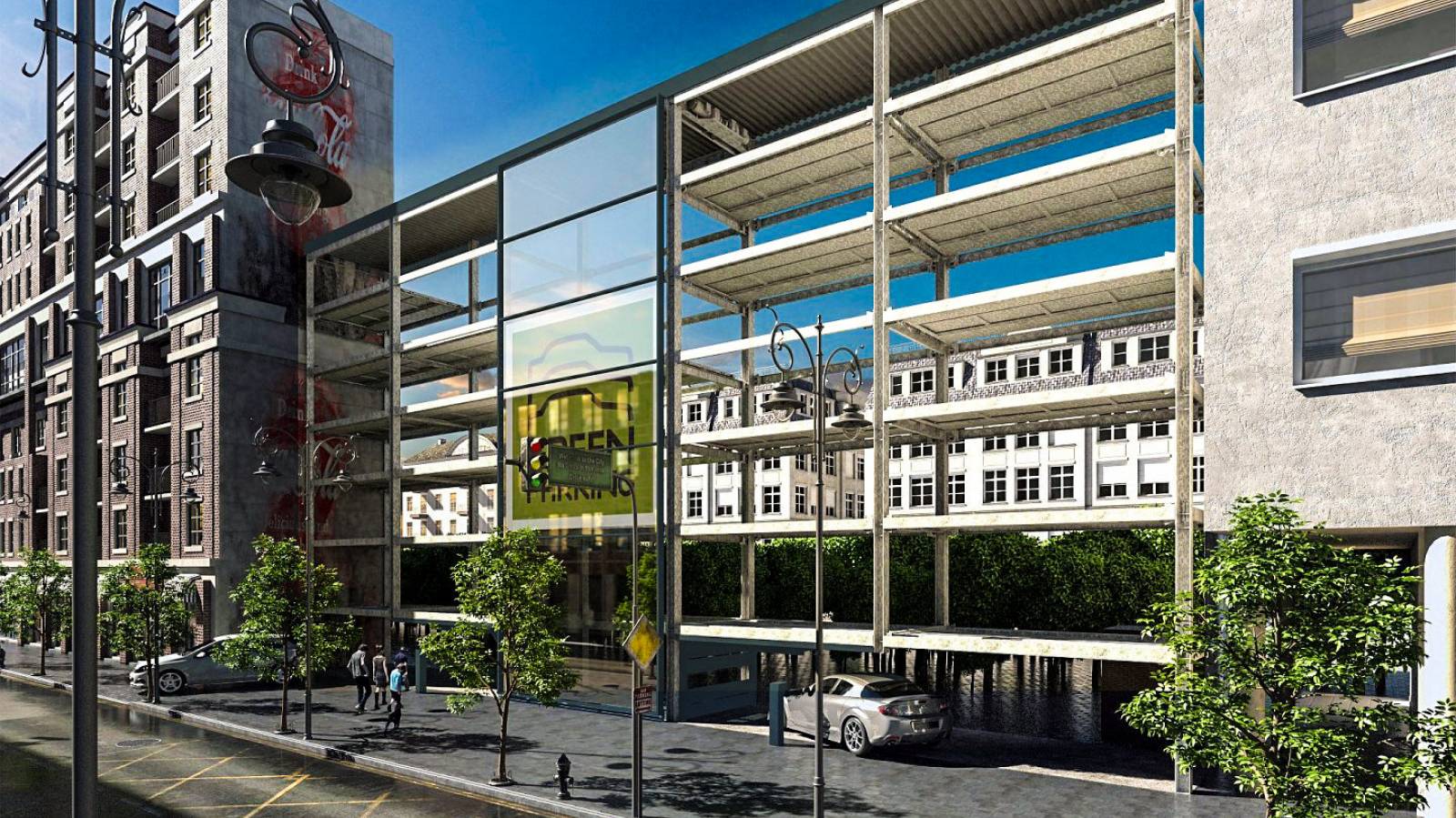

Projecting skywards: the new WÖHR Slimparker 557 Tower is slim and versatile.

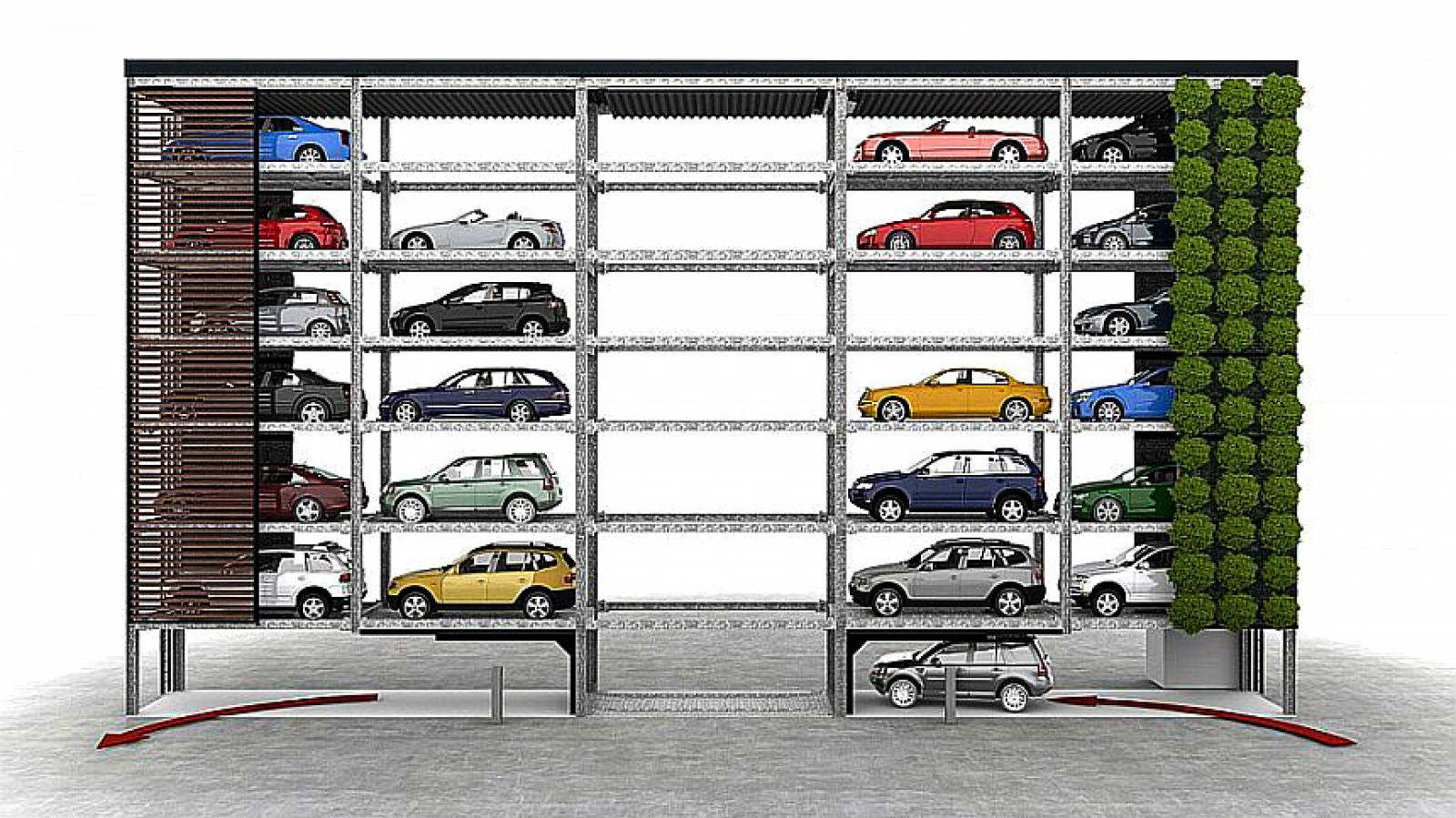

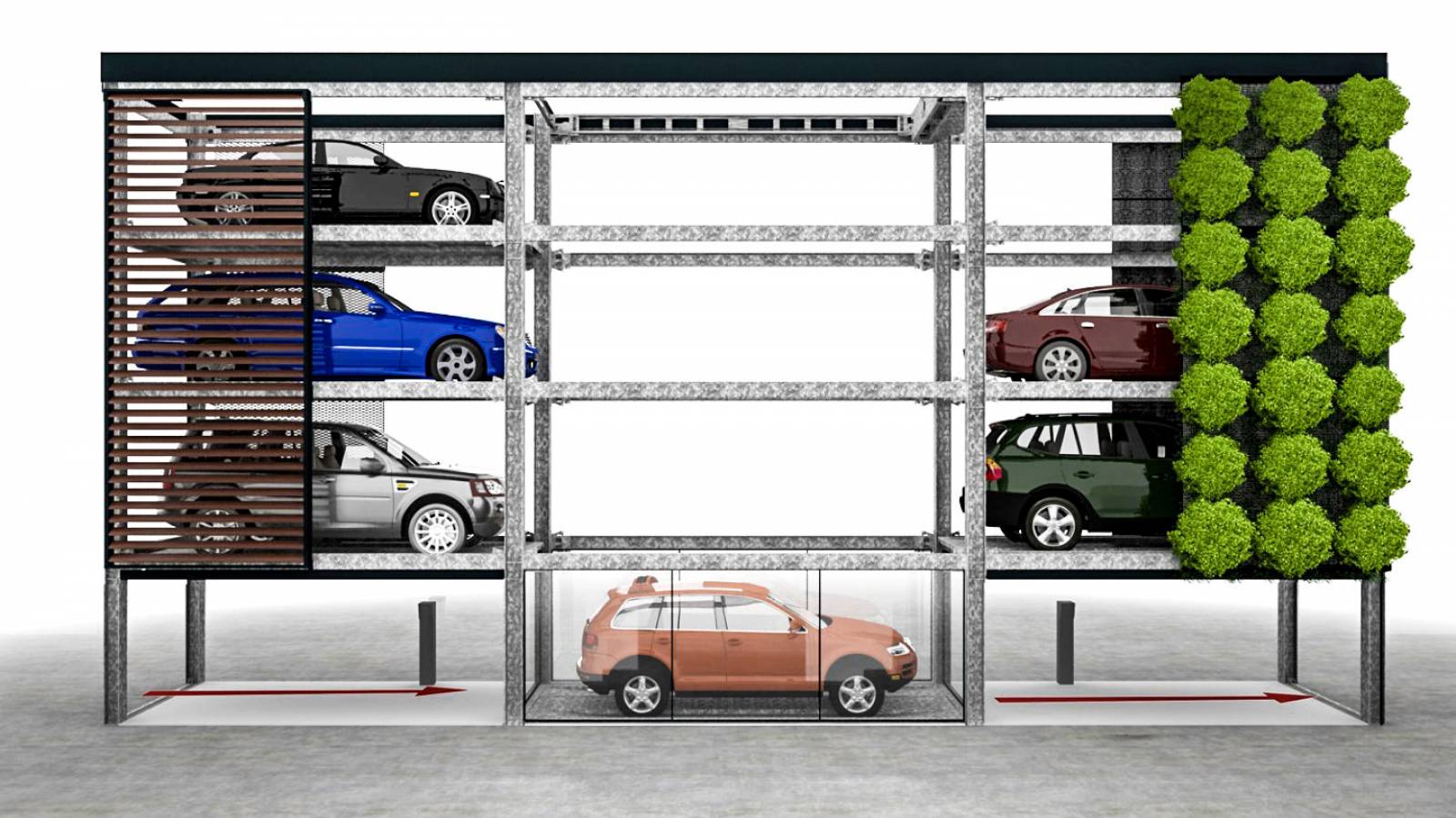

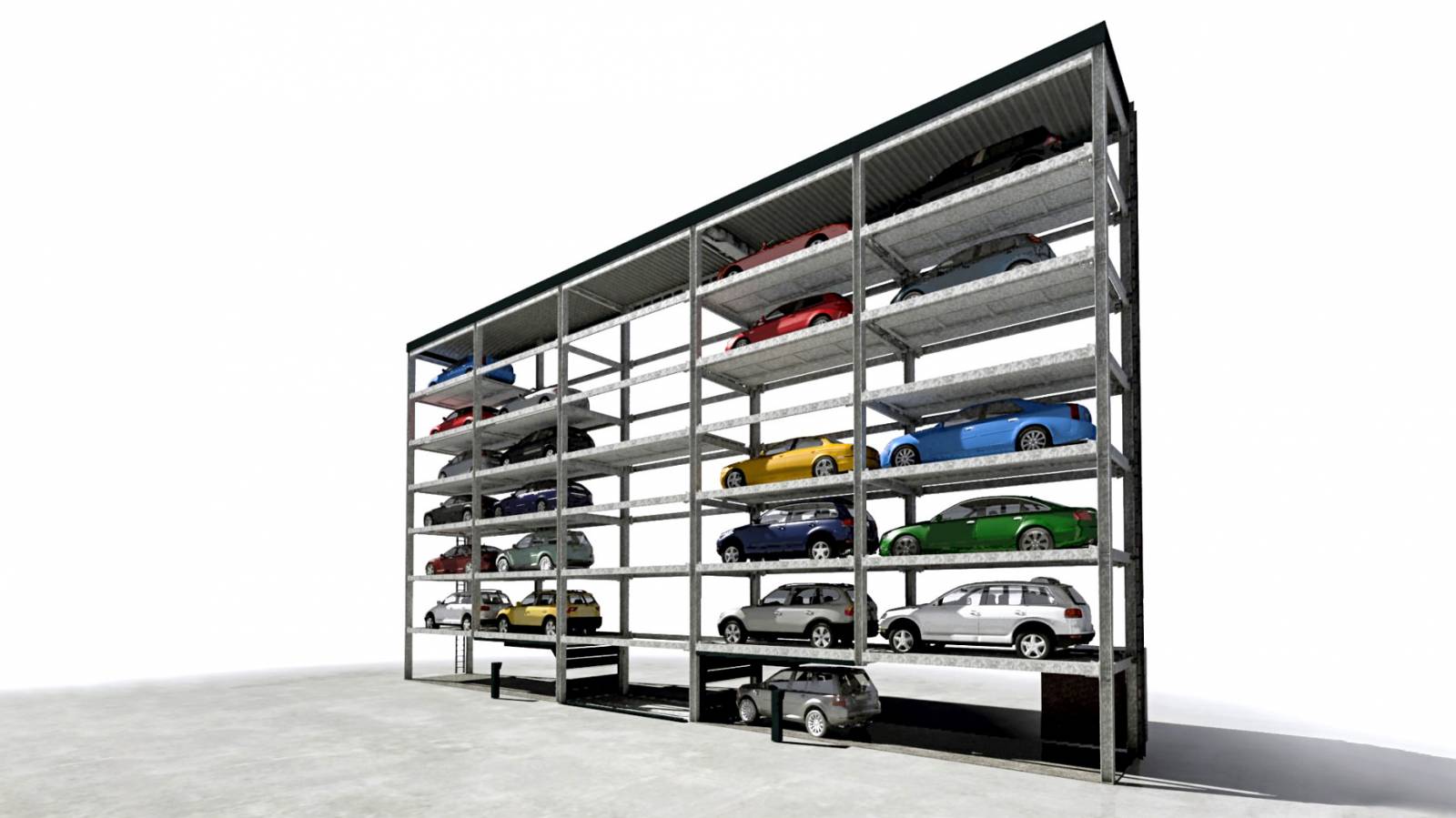

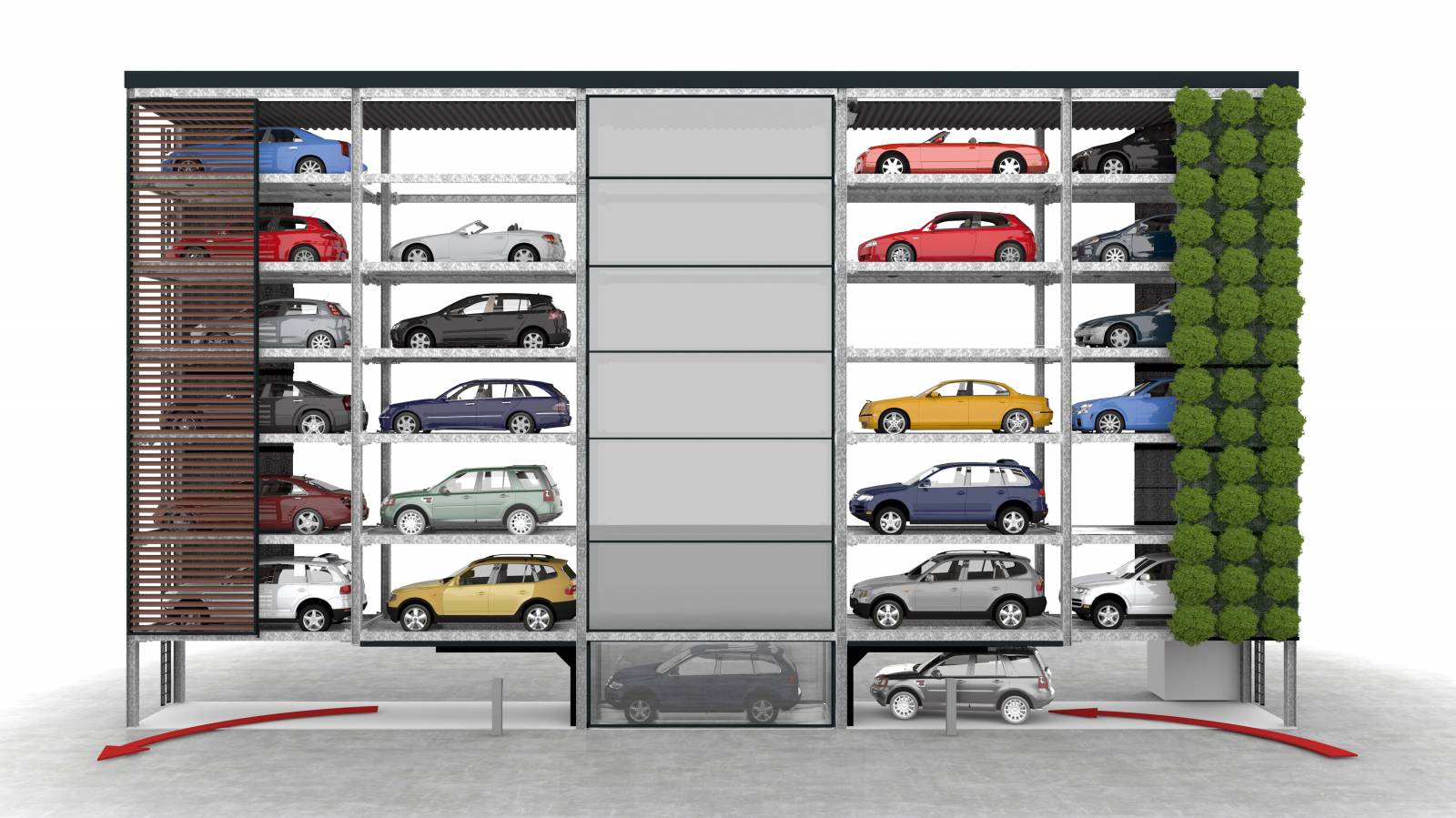

The new parking system Slimparker 557 offers up to 23 above-ground parking spaces on narrow and long ground plans. A central vertical lift located in the transfer area conveys the car to one of the 6 possible parking levels per system. Each parking level can store up to 4 cars. The slim construction contours allows incorporation into a soundproof wall. This safeguards the residents of housing areas against adjacent road and rail traffic noise pollution. Narrow gaps can be used for additional car parking spaces.

Specifications

• Automatic parking system for up to 23 cars
• Platform load 2,000 kg and 2,600 kg
• Narrow gaps are perfectly closed
• Very small ground plan and very slim construction
• No space-intensive ramps and driveways

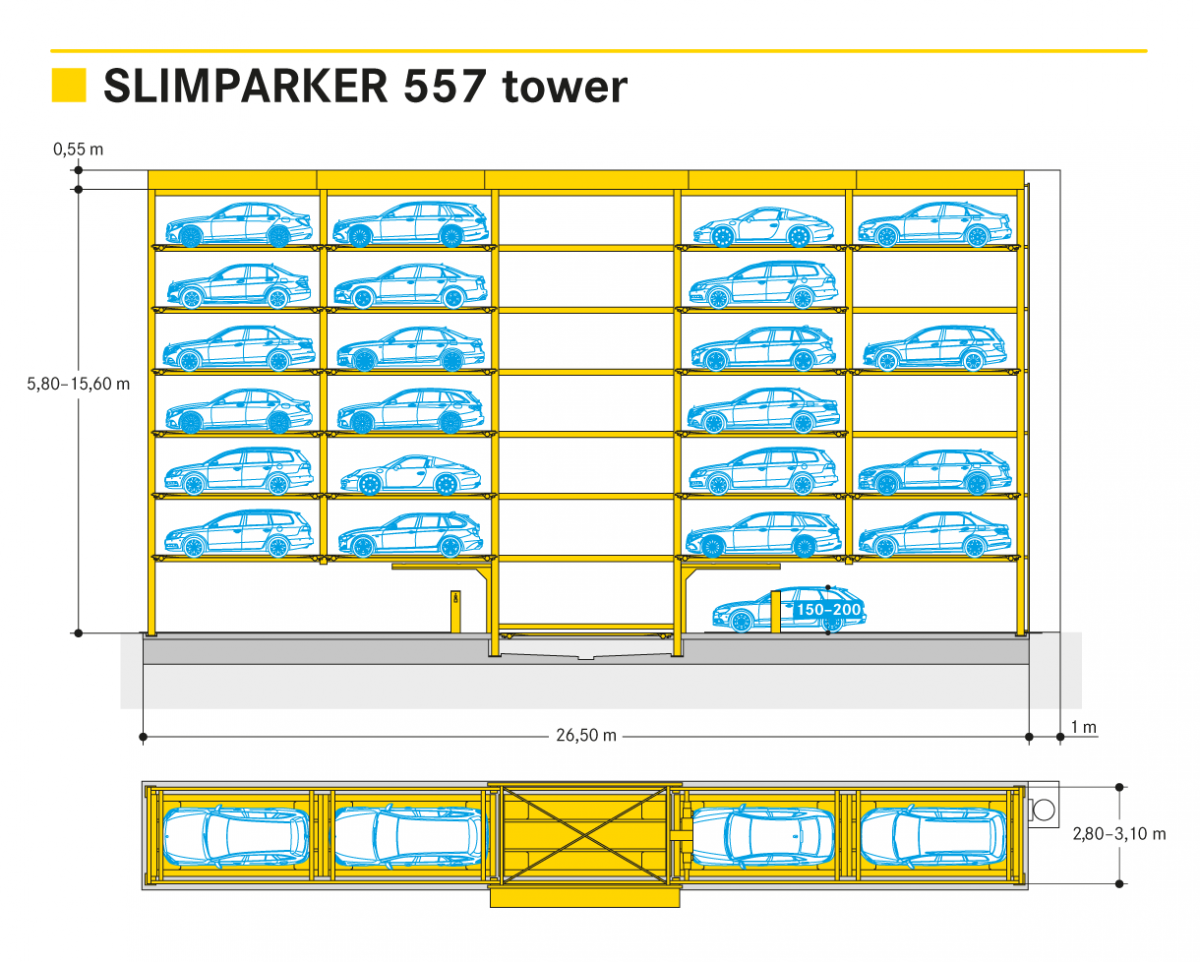

• Slim installation width of only 280 cm, can be extended up to 310 cm in 10 cm steps
• Different car heights from 150-200 cm can be accommodated

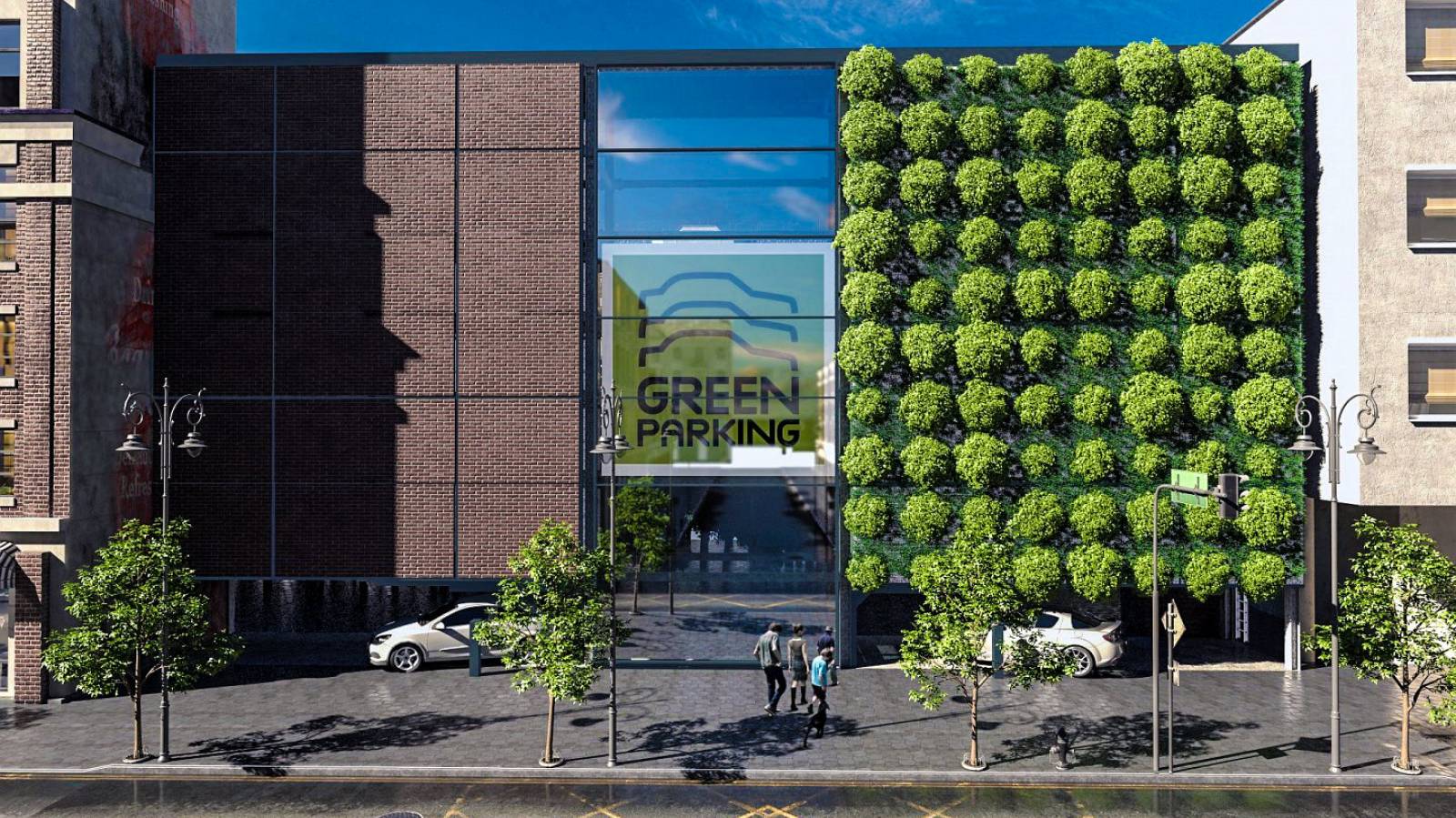

• Individual facade design is possible - max. weight of approx. 50 kg per m²
• Following the idea of "Green-Parking"
